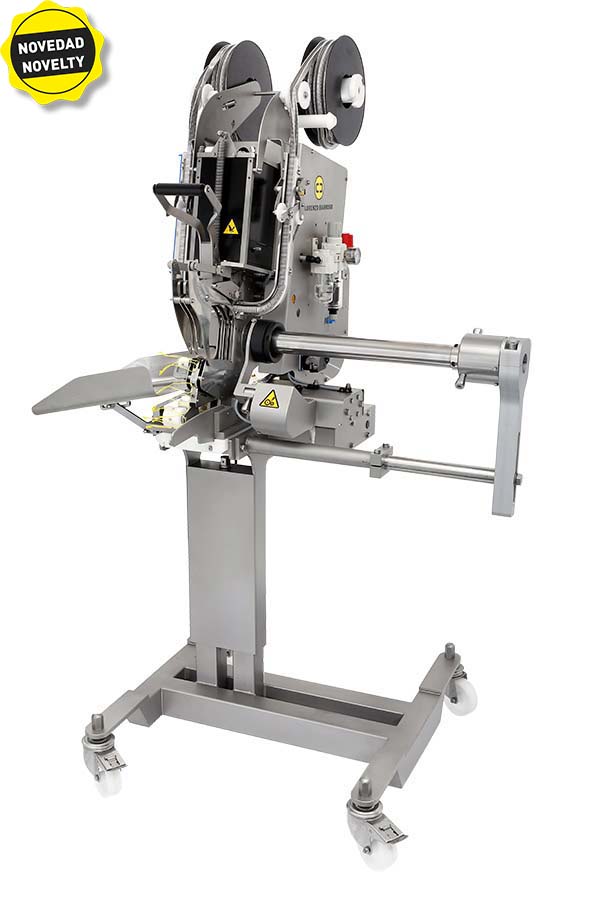

• Double semiautomatic clipper machine connected to a filler to clip sausages.
• The SK4-120 can clip a large variety of sausages with any casing for caliber between 40 and 120mm, please enquiry for bigger calibers.
• Allows the parameters to be tailored for different products.
• Robust design with stainless steel materials.
• Electro-pneumatic operation.
• Minimal maintenance.
• Clip reference used: H-3200 in stick or spool.
FEATURES
• Semi-automatic operation of the machine.
• Selector configuration.
• Accessory: Clip on spool.
• Accessory: automatic loop device.
• Filling tube’s movement to ensure the clip is in the center of the sausage with a minimum effort.
GENERAL TECHNICAL DATA.
Net weight: 135 Kg.
Operating pressure: 6 bar
Air consumption: 8,2 liters/cycle
Electric consumption: 20 W
Electric connection: 50Hz 220V / 60Hz 240V
model
range of clips
H3200 – H-3214, H-3216, H-3218, H-3221Options
